[Applet] 자바 애플릿(Java Applet)으로 전세계 기대수명 시각화하기 [Bonus: Visualizing life expectancy]

- 자바 애플릿(Java Applet)으로 전세계 기대수명 시각화하기

- LifeExpectancy.java

import processing.core.PApplet;
import de.fhpotsdam.unfolding.UnfoldingMap;
import de.fhpotsdam.unfolding.utils.MapUtils;
import de.fhpotsdam.unfolding.providers.*;

import java.util.List;
import de.fhpotsdam.unfolding.data.Feature;
import de.fhpotsdam.unfolding.data.GeoJSONReader;

import java.util.HashMap;
import java.util.Map;


import de.fhpotsdam.unfolding.marker.Marker;

/**
 * Visualizes life expectancy in different countries.
 *
 * It loads the country shapes from a GeoJSON file via a data reader, and loads the population density values from
 * another CSV file (provided by the World Bank). The data value is encoded to transparency via a simplistic linear
 * mapping.
 */
public class LifeExpectancy extends PApplet {

	UnfoldingMap map;
	Map<String, Float> lifeExpByCountry;
	List<Feature> countries;
	List<Marker> countryMarkers;

	public void setup() {
		size(800, 600, OPENGL);
		map = new UnfoldingMap(this, 50, 50, 700, 500, new Google.GoogleMapProvider());
		MapUtils.createDefaultEventDispatcher(this, map);

		// Load lifeExpectancy data
		lifeExpByCountry = loadLifeExpectancyFromCSV("LifeExpectancyWorldBankModule3.csv");
		println("Loaded " + lifeExpByCountry.size() + " data entries");


		// Load country polygons and adds them as markers
		countries = GeoJSONReader.loadData(this, "countries.geo.json");
		countryMarkers = MapUtils.createSimpleMarkers(countries);
		map.addMarkers(countryMarkers);

		// Country markers are shaded according to life expectancy (only once)
		shadeCountries();
	}

	public void draw() {
		// Draw map tiles and country markers
		map.draw();
	}

	//Helper method to color each country based on life expectancy
	//Red-orange indicates low (near 40)
	//Blue indicates high (near 100)
	private void shadeCountries() {
		for (Marker marker : countryMarkers) {
			// Find data for country of the current marker
			String countryId = marker.getId();
			if (lifeExpByCountry.containsKey(countryId)) {
				float lifeExp = lifeExpByCountry.get(countryId);
				// Encode value as brightness (values range: 40-90)
				int colorLevel = (int) map(lifeExp, 40, 90, 10, 255);
				marker.setColor(color(255-colorLevel, 100, colorLevel));
			}
			else {
				marker.setColor(color(150,150,150));
			}
		}
	}

	//Helper method to load life expectancy data from file
	private Map<String, Float> loadLifeExpectancyFromCSV(String fileName) {
		Map<String, Float> lifeExpMap = new HashMap<String, Float>();

		String[] rows = loadStrings(fileName);
		for (String row : rows) {
			// Reads country name and population density value from CSV row
			// NOTE: Splitting on just a comma is not a great idea here, because
			// the csv file might have commas in their entries, as this one does.
			// We do a smarter thing in ParseFeed, but for simplicity,
			// we just use a comma here, and ignore the fact that the first field is split.
			String[] columns = row.split(",");
			if (columns.length == 6 && !columns[5].equals("..")) {
				lifeExpMap.put(columns[4], Float.parseFloat(columns[5]));
			}
		}

		return lifeExpMap;
	}

}

---

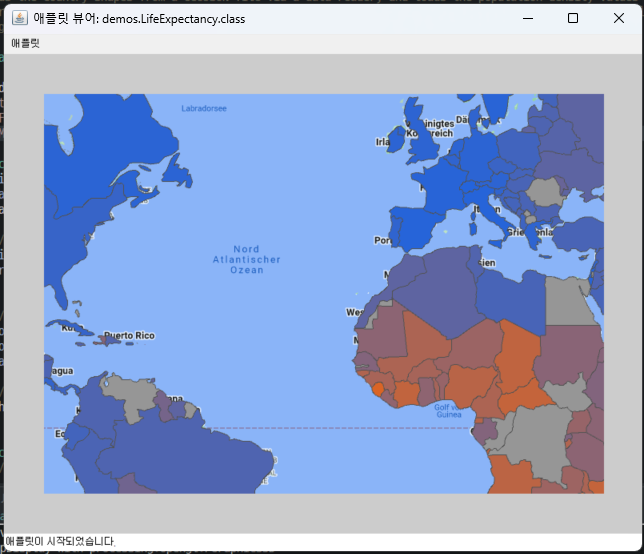

전세계 기대수명 시각화하기

---
